IP68 Red LED Aviation Obstruction Light High Transmittance Thermal Stability

Product Categories
SHENZHEN ANHANG TECHNOLOGY CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

IP68 Red LED Aviation Obstruction Light High Transmittance Thermal Stability

  • 1
  • 2

Brand Name : ANNHUNG

Model Number : AH-MI/I

Certification : ICAO

Place of Origin : Shenzhen, China

MOQ : 1 pc

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 Pieces Per Month

Delivery Time : Shipped in 15 days after payment

Packaging Details : paper carton 1 piece/box

Light source : LED

Emitting color : Red

Wind rating : 80m/s

Protection standard : IP67

Net Weight : 5KG

LED Service life : ≥ 100,000hours

Contact Now

IP68 Red LED Aviation Obstruction Light High Transmittance Thermal Stability

Advantages

1. Independent design with integrated photocell, power supply flasher and monitoring
2. Integrated automatic flash synchronisation beam optical design
3. High borosilicate glass material with good thermal stability, high transmittance.
4. Built-in circuit protect LED, extremely reliable and cost saving.
5. Anti-knock and anticorrosion. It can be used in very rugged environment.
6. LED is special red color for Aviation Obstruction Light. Typical LED lifetime is more than 100,000 hours.
7. Resistant to heavy rain or storms.
8. Free maintenance and aluminum alloy Material.
9. Five year warranty
10. low power consumption and low cost of ownership.

Application:

IP68 Red LED Aviation Obstruction Light High Transmittance Thermal Stability

This series of products can be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole, Tower Crane, Wind Tubine, etc whose height is
between 45m and 105m. When the building is higher than 105m, this series of products can be used with Medium-intensity Type A or highintensity obstruction light to potentially hazardous obstructions to air
traffic flashing red safety light.

Specifications:

SPECIFICATIONS AH- MI/I Medium-intensity Double Aviation Obstruction Light
Light Characteristics
Light Source LED
Available Colors Red
Intensity(cd) 2,000cd ±25%
Horizontal Output(degrees) 360
Vertical Divergence(degrees) 3
Flash Characteristics Flashing mode (20 to 60 times/minute)
Operation Mode Dusk-to-dawn Automatically as standard.
LED Life Experience(hours) ≥100,000
Electrical Characteristics
Supply Voltage

AC220V (option

voltage,eg.AC120V,AC110V,DC48V)
Power(W) 60
Temperature Range(℃) -40~60
Physical Characteristics
Body Material High borosilicate glass
Base Material die casting aluminum
Mounting Φ190 by 12
Height(mm) 236
Width(mm) 236
Depth(mm) 245
Mass(kg) 7
Product Life Expectancy 5 years plus
Environmental Factors
Humidity 0~100%
Wind Speed 80m/s
Waterproof IP68
Compliance
ICAO

Medium-intensity Type B, ICAO Annex 14

Volume 1,'Aerodrome Design and

Operations’ Forth edition July

2004,table6.3
FAA

Medium-intensity Type B and FAA L-864 &

L-865

Dimension Drawing

IP68 Red LED Aviation Obstruction Light High Transmittance Thermal Stability

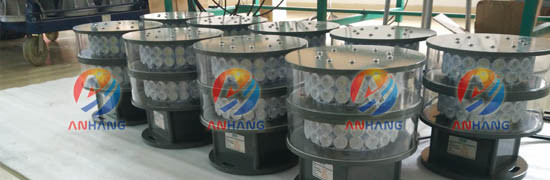

Product Picture

IP68 Red LED Aviation Obstruction Light High Transmittance Thermal Stability
